Fast Response Smart Board Interactive Whiteboard Compatible with Tablets And SmartPhones And PC
Featues:
›√ 30 STUDENTS AS A TEAM, INTERACTION NETWORK
›√ ONLINE TEACHING,REAL-TIME TRANSMISSION
›√ INSTANT RECORD, ANY WHERE, ANY TIME
›√ MULTI TOUCH BRING ACTIVE LEARNING ATMOSPHERE
›√ TO PROTECT ENVIRONMENT,ON-LINE EXAMINATION
›√E-LEARNING TO BREAK TRADITIONAL TEACHING
Specifications:
| Touch technology |
Infrared multi touch technology |
| Touch model |
10 touch points |
| Induction object |
Finger, pen, any opaque objects |
| Size of induction |
Greater than or equal to 5 mm in diameter |
| Resolution |
32768*32768 |
| Response time |
First point 25ms consecutive points 8ms |
| Cursor speed |
≥200dots/second |
| Glass Thickness |
4mm Normal or Anti-glare tempered glass |
| Operating voltage |
DC 4.6V ~ DC 5V by USB |
| Consumption current |
<1W, current ≤ 100mA |
| Touch Activation Force |
No pressure needed |
| Service life |
>6 million times single spot touch |
| Transferring rate |
12m/s |
| Positioning accurac |
≤0.1mm |
| Droop resistant |
Yes, prevent due to long time work performance degradation |
| Certificate |
CE, FCC, ROHS, ISO 9001 |
| Warranty |
3 Years |
Aluminum Frame
Specific gravity is 1.4 kg/m. With spray technology for white color. The appearance of product is massy
and beautiful.
Board Surface
There are three board surface can be choose from TACTEASY, no matter what kind of board surface you choose ,
the evenness and longevity can be guaranteed. Because the compact structure and stable of aluminum honeycomb core,
keep the surface smooth and long life. Support the water ink pen writing and washing.
A. Aluminum plate
Both sides are all aluminum plate. Front side and back side thickness are all 0.8 mm. The weight is the lightest.
B. Steel plate
Both sides are all steel plate. Front side and back side thickness are all 0.8 mm. The weight is relatively heavier.
C. Ceramic board
The front side is 0.4mm ceramic plate, back side is 0.4mm steel plate. The weight is heavier but the ceramic surface
has higher hardness. Even sharp blade can’t damage the surface. However, the Cost is highest.

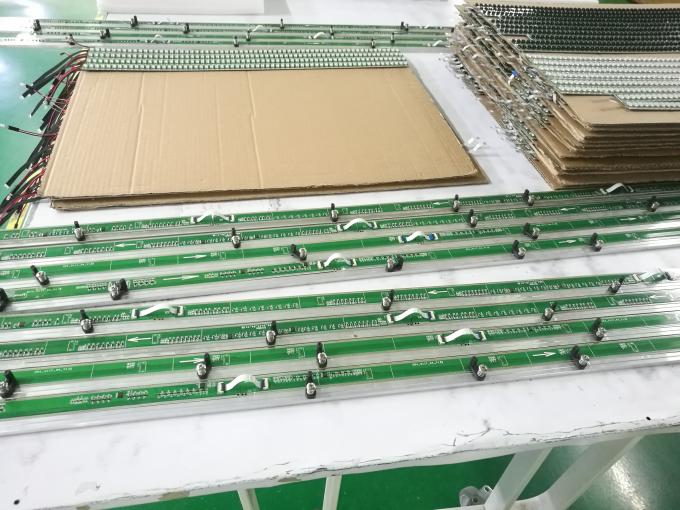

PCB board
TACTEASYwork with top suppliers, use the best electronic components and LED lights for PCB board.
Using the imported chip to calculate the huge data from multi touch points. The link up design of part
with part help to reduce the cost of wear and tear, don’t need to change all PCBs.
Accessories for school laboratory equipment smart board
Wall Mount
A pointer
Operating Instructions
4 x whiteboard Pen
Software CD
6M USB cable
Mobile stand(optional)
Interactive software
›The interactive software incorporates drawing tools and shapes for meetings, presentations and teaching, so that
you can draw on surface by fingers, annotate live websites and save your work for reference etc.
Support to interact between Window and Android.
