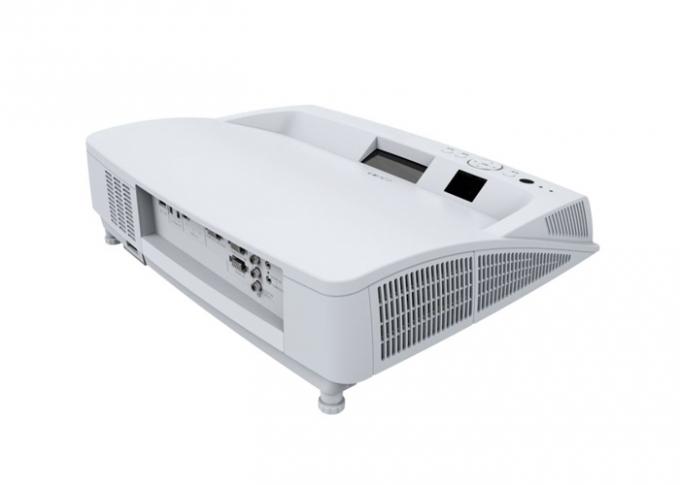

4k Ultra Short Throw Laser Projector For Smart Interactive Whiteboard And All-in-one Touch Screen
Short throw laser projector for SMART BOARD
Short throw laser projector for education, DLP, 3D ready
OEM order is acceptable
PRDUCT FEATURES:
1. Hybrid filter& Powerful Cooling System
Optimized cooling system: multiple cooling outlets and inlets design enables effective and powerful dispersion of heat and even in high altitude.
2. Long Lamp Life
Laser light projector has 20000 hours lamp life, compared with ordinary projector bulb, working life will be increased 4 times.
3. Network Control
By wired connection RJ45, the user can control or monitor all projectors in distance by on/off, configuration, viewing lamp time and operating status by entering corresponding IP through internet browser.
4. Security
An improved security bar enables projectors to be attached to a convenient place by a cable or a chain.
5. Multimedia Play & Customized Boot Screens
Support reading Flash disk, mobile HDD and other multimedia equipment through the USB port, be compatible for video, audio and office documents and played directly.
| Status |
MP |
| Model Description |
XGA, 4500Lm
(ultra short throw laser projector) |
| Model Name |
PLR-W61AS(116) |
| Photo |
|
| 銆 |
Basic Specification |
銆 |
| 1 |
Projection System |
DLP |
| 2 |
Native Resolution |
0.55" S450 DC2, 1024x768 |
| 3 |
Brightness |
Mkt.: 3400 ANSI lumens
Typ.: 3100 ANSI lumens
Min.: 2800ANSI lumens |
| 4 |
Contrast Ratio (Full on/off) |
12000:1 |
| 5 |
Display Color |
30 Bits (1,037,000,000 colors) |
| 7 |
Aspect Ratio |
Native 4:3 |
| 8 |
Th row Ratio |
0.3 (80" @48.8 cm) |
| 9 |
Image Size (Diagonal) |
80" ~150" |
| 10 |
Zoom Ratio |
fixed |
| 11 |
Light Source Type |
LD module P3000 |
| 12 |
Life (Normal/Economic) |
20000Hrs |
| 13 |
Keystone Adjustment |
2D, Vertical & Horizontal ± 30 degrees
Auto Vertical |
| 14 |
Lens Shift |
No |
| 15 |
Projection Offset |
117%+/-5% |
| 16 |
Resolution Support |
VGA(640 x 480) to WUXGA(1920 x 1200) |
| 17 |
HDTV Compatibility |
480i, 480p, 576i, 567p, 720p, 1080i, 1080p |
| 18 |
Video Compatibility |
NTSC, PAL, SECAM, SDTV
(480i/576i), EDTV (480p/576p,
HDTV (720p, 1080i/p 60Hz) |
| 19 |
Horizontal Frequency |
15K~102KHz |
| 20 |
Vertical Scan Rate |
23~120Hz |
| 21 |
Focus Range |
80"~150" |
| 22 |
Color Wheel Segment |
RYGB |
| 23 |
Color Wheel Speed |
2X |
| 24 |
Color Gamut |
TBD (Refer to "Picture Mode") |
| 25 |
ANSI Uniformity (Min.) |
-50% |
| 26 |
JBMA Uniformity (Min) |
70% |
| 27 |
Defocus |
2.5 |
| 28 |
Flare |
3.5 |
| 29 |
Focus unbalance |
No define |
| 30 |
TV Distortion |
<1% |
| 銆 |
Interface |

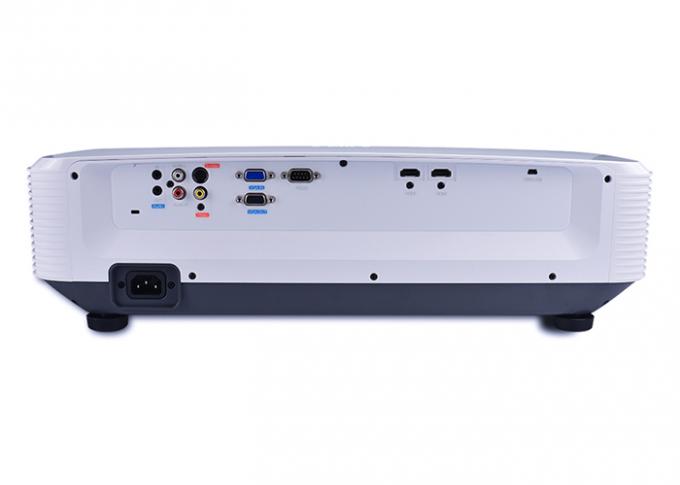

銆 |
| 1 |
Computer in (D-sub 15pin) |
x1 |
| 2 |
Monitor out (D-sub 15pin) |
x1 |
| 3 |
HDMI/ MHL |
x2 |
| 4 |
DVI-D |
No |
| 5 |
Composite Video in (RCA) |
x 1 |
| 6 |
S-Video in (Mini DIN 4pin) |
x 1 |
| 7 |
Component Video in (RCAX3) |
No |
| 8 |
Audio in (Mini Jack) |
x 1 |
| 9 |
Audio L/R in (RCAx2) |
x 1 |
| 10 |
Audio out (OPTICAL) |
No |
| 11 |
Audio out (Mini Jack) |
x 1 |
| 12 |
Microphone in (Mini Jack) |
No |
| 13 |
Speaker |
10W x 1 |
| 14 |
LAN (RJ45) |
No |
| 15 |
RS232 (DB-9pin) |
x 1 |
| 16 |
USB (Type A) |
No |
| 17 |
USB (Type B) |
No |
| 18 |
USB (Type Mini B) |
No |
| 19 |
3D Vesa |
No |
| 20 |
DC 12V Trigger (3.5mm Jack) |
No |
| 21 |
Wired Remote (Mini Jack) |
No |
| 22 |
IR |
x 1 (Front, facing user) |
| 23 |
Imteractive module |
No |
| 銆 |
Environment |
銆 |
| 1 |
Dimensions (WxHxD) |
456 x 376 x 132 mm |
| 2 |
Weight |
TBD 10.5 Kgw |
| 3 |
Power Supply |
AC 100 to 240 V, 50/60 Hz |
| 4 |
Typical Power Consumption |
< 380W |
| 5 |
Stand-by Power Consumption |
< 0.5W |
| 6 |
Network work standby |
N/A |
| 7 |
Acoustic Noise (Typ./Eco.) |
TBD (30/ 28 dBA @ 2M) |
| 8 |
Operating Temperature |
0~35鈩 |
| 9 |
ID color |
Refer to ID definition |
| 銆 |
Accessories (Standard) |
銆 |
| 1 |
Carton |
Yes |
| 2 |
Carry Bag |
No |
| 3 |
Remote Control w/ Battery |
x 1 |
| 4 |
Power Cord (by region) |
x 1 (1.8M) |
| 5 |
User Manual CD |
x 1 (only Chines simplified) |
| 6 |
Quick Start Guide |
x 1 (only Chines simplified) |
| 7 |
Warranty Card (by region) |
x 1 |
| 8 |
VGA(D-sub 15pin) Cable |
x 1 |
| 9 |
Lens cover |
No |
| 10 |
HDMI cable (1.8m) |
x 1 |
