Home Products Ultra Short Throw Laser Projector

Full Hd Ultra Short Throw Video Projector , Durable Short Throw Lcd Projector

Product Details:

Place of Origin:	China
Brand Name:	Tacteasy
Certification:	CE,FCC,ROHS,ISO
Model Number:	PLR-W61AS(116)

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiation
Packaging Details:	paper box 460 x 382 x 137mm
Delivery Time:	10-15 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	2000pieces per month

Contact Now

Detailed Product Description

Brightness:	3500lumens	Weight:	2.6kg
Native Resolution:	0.55" S450 DC2, 1024x768	Model Name:	PLR-W61AS(116)
Projection System:	DLP	Contrast Ratio (Full On/off):	12000:1
Aspect Ratio:	Native 4:3	Light Source Type:	LD Module P3000

White Short Throw Laser Projector for Education Whiteboard and School Classroom
PRDUCT FEATURES:
1. Hybrid filter& Powerful Cooling System
Optimized cooling system: multiple cooling outlets and inlets design enables effective and powerful dispersion of heat and even in high altitude.
2. Long Lamp Life
Laser light projector has 20000 hours lamp life, compared with ordinary projector bulb, working life will be increased 4 times.
3. Network Control
By wired connection RJ45, the user can control or monitor all projectors in distance by on/off, configuration, viewing lamp time and operating status by entering corresponding IP through internet browser.
4. Security
An improved security bar enables projectors to be attached to a convenient place by a cable or a chain.
5. Multimedia Play & Customized Boot Screens
Support reading Flash disk, mobile HDD and other multimedia equipment through the USB port, be compatible for video, audio and office documents and played directly.
Short throw laser projector for SMART BOARD
Short throw laser projector for education, DLP, 3D ready
OEM order is acceptable

銆€

Basic Specification

銆€

Projection System

DLP

Native Resolution

0.55" S450 DC2, 1024x768

Brightness

Mkt.: 3400 ANSI lumens
Typ.: 3100 ANSI lumens
Min.: 2800ANSI lumens

Contrast Ratio (Full on/off)

12000:1

Display Color

30 Bits (1,037,000,000 colors)

Aspect Ratio

Native 4:3

Throw Ratio

0.3 (80" @48.8 cm)

Image Size (Diagonal)

80" ~150"

Zoom Ratio

fixed

Light Source Type

LD module P3000

Life (Normal/Economic)

20000Hrs

Keystone Adjustment

2D, Vertical & Horizontal ± 30 degrees
Auto Vertical

Lens Shift

Projection Offset

117%+/-5%

Resolution Support

VGA(640 x 480) to WUXGA(1920 x 1200)

HDTV Compatibility

480i, 480p, 576i, 567p, 720p, 1080i, 1080p

Video Compatibility

NTSC, PAL, SECAM, SDTV
(480i/576i), EDTV (480p/576p,
HDTV (720p, 1080i/p 60Hz)

Horizontal Frequency

15K~102KHz

Vertical Scan Rate

23~120Hz

Focus Range

80"~150"

Color Wheel Segment

RYGB

Color Wheel Speed

Color Gamut

TBD (Refer to "Picture Mode")

ANSI Uniformity (Min.)

-50%

JBMA Uniformity (Min)

70%

Defocus

2.5

Flare

3.5

Focus unbalance

No define

TV Distortion

<1%

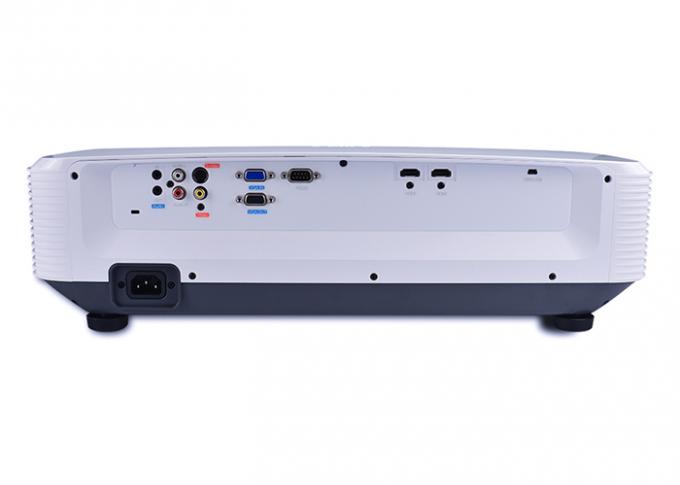

銆€	Interface	銆€
1	Computer in (D-sub 15pin)	x1
2	Monitor out (D-sub 15pin)	x1
3	HDMI/ MHL	x2
4	DVI-D	No
5	Composite Video in (RCA)	x 1
6	S-Video in (Mini DIN 4pin)	x 1
7	Component Video in (RCAX3)	No
8	Audio in (Mini Jack)	x 1
9	Audio L/R in (RCAx2)	x 1
10	Audio out (OPTICAL)	No
11	Audio out (Mini Jack)	x 1
12	Microphone in (Mini Jack)	No
13	Speaker	10W x 1
14	LAN (RJ45)	No
15	RS232 (DB-9pin)	x 1
16	USB (Type A)	No
17	USB (Type B)	No
18	USB (Type Mini B)	No
19	3D Vesa	No
20	DC 12V Trigger (3.5mm Jack)	No
21	Wired Remote (Mini Jack)	No
22	IR	x 1 (Front, facing user)
23	Imteractive module	No
